FK Rod Ends

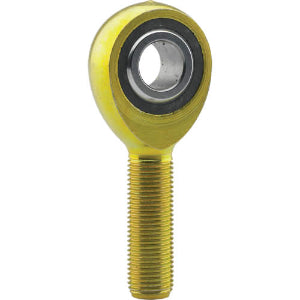

FK Rod Ends NJM8 - 1/2" Spherical Rod End Bearing with Nylon Race & Jam Nut
FK Rod Ends NJM8 - 1/2" Spherical Rod End Bearing with Nylon Race & Jam Nut
Regular price
$9.95 USD
Regular price
Sale price
$9.95 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Premium 3-piece spherical rod end bearing engineered for high-performance Linkage applications. The FK Rod Ends NJM8 features a self-lubricating nylon race design that delivers exceptional durability and smooth operation in demanding conditions. 1/2" 20 RH Thread. Jam Nut Included.
Key Features
- Self-Lubricating Design - PTFE-lubricated nylon race eliminates the need for maintenance
- Carbon Fiber Reinforced - Enhanced strength and wear resistance for long-lasting performance
- High Load Capacity - Ultimate static radial load rating of 6,453 lbs
- Corrosion Resistant - Zinc-plated and chromate-treated steel construction
- Precision Engineered - Case-hardened low carbon steel ball for consistent performance
Construction Details
- Ball: Low carbon steel, case hardened, zinc plated
- Body: Low carbon steel, zinc plated, chromate treated
- Race: Nylon with PTFE lubrication and carbon fiber reinforcement
Technical Specifications
| Right Hand Part Number | Left Hand Part Number | B DIA | D DIA | W WTH | T WTH | Ball DIA | A LGTH | N THD | C LGTH | Mis Angle | ULT Static Radial Load | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| +.0025 -.0005 |
+.010 -.010 |
+.005 -.005 |
+.015 -.015 |
REF | +.015 -.015 |
UNF 3A |
+.062 -.031 |
REF | (lbs) | (lbs) | ||
| NJM8 | NJML8 | .5000 | 1.312 | .625 | .500 | .937 | 2.438 | 1/2-20 | 1.500 | 12 | 6,453 | .25 |
Includes jam nut for secure installation.
